GR465/68M
0,00 د.إ

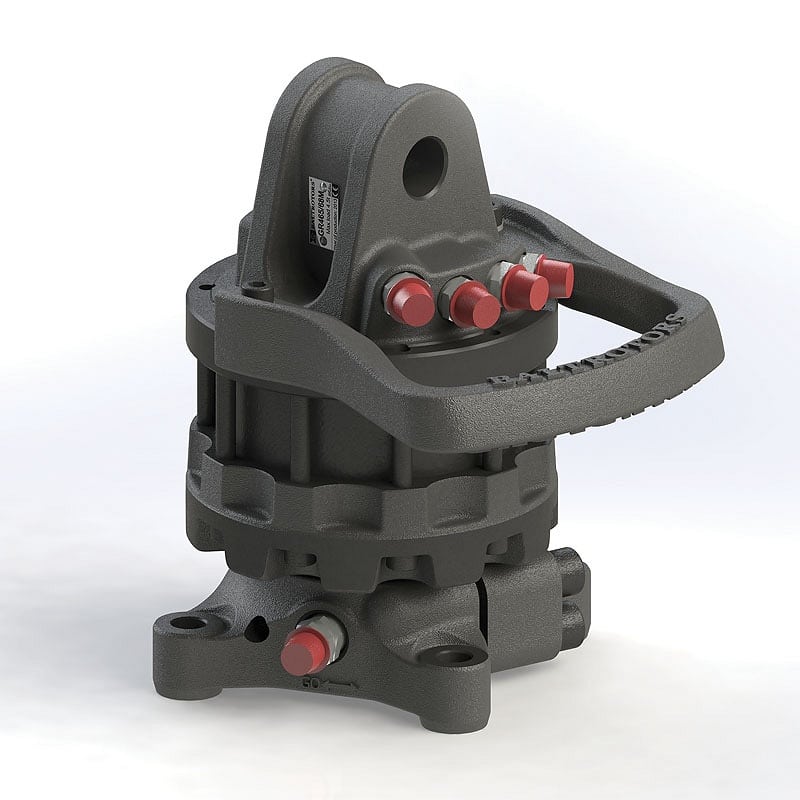

Modification of GR46/68M rotator with “square” 140 mm flange-type lower connection. Upper connection – EYE form factor of the knuckle joint. Lower connection – FLANGE form factor, to be mounted on the grapple/tool.
Description
Modification of GR46/68M rotator with “square” 140 mm flange-type lower connection. Upper connection – EYE form factor of the knuckle joint. Lower connection – FLANGE form factor, to be mounted on the grapple/tool.
ROTATION: Unlimited
MAX. AXIAL LOAD STATIC: 45 kN (10118 lbf)
MAX. AXIAL LOAD DYNAMIC: 25 kN (5621 lbf)
TORQUE: 1200 Nm (885 lbf)
REC. OILFLOW: 22 l/min
WEIGHT: 35 kg
UPPER CONNECTION L: 73 mm (2.87 in)
UPPER CONNECTION D: 30 mm (1.18 in)
